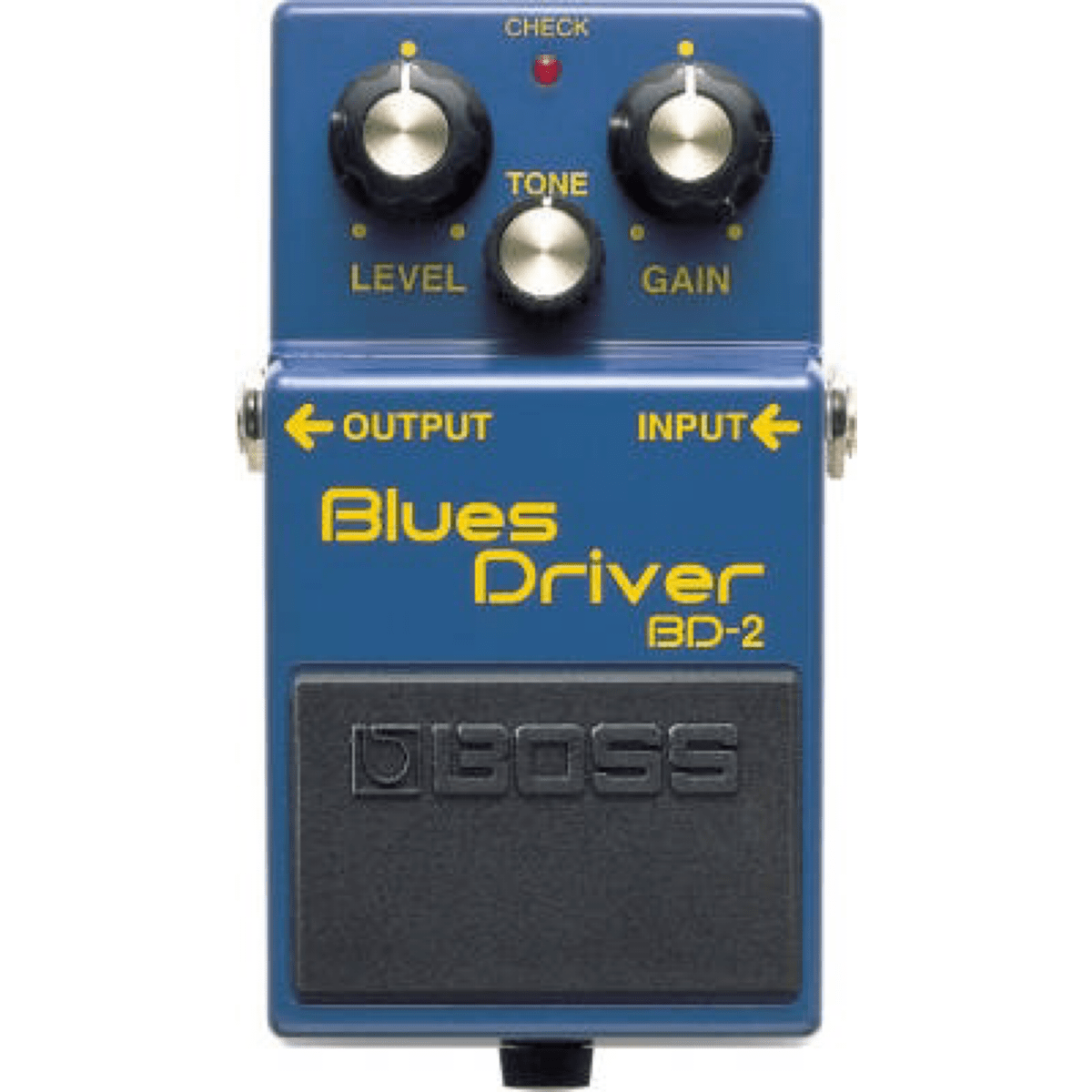

Boss Blues Driver Pedal

THE PERFECT TONE FOR BLUES

The BD-2 Blues Driver delivers the creamy, yet crunchy sound associated with great blues guitar. This popular pedal provides instant access to the kind of warm overdrive and emotive distortion usually reserved for 30-year-old tube amps.

• Classic “blues” guitar tones with tube amp simulation
• Warm distortion and overdrive
• Responds to nuance and volume changes
• AC adaptor or 9V battery operation
• BOSS five-year warranty

Nominal Input Level-20 dBu

Input Impedance- 1 M ohm

Nominal Output Level-20 dBu

Output Impedance1 k ohm

Recommended Load Impedance-10 k ohms or greater

Controls: Pedal switch
GAIN knob
TONE knob
LEVEL knob

Indicator-CHECK indicator (Used for indication of check battery)

Connectors-INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jackPower Supply

Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)Current Draw20 mAExpected battery life under continuous useCarbon: Approx. 24.5 hours
Alkaline: Approx. 44 hours
*These figures will vary depending on the actual conditions of use.AccessoriesOwner’s manual
Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information”)
Carbon-zinc battery (9 V, 6F22)Option (sold separately)AC adaptor (PSA series)
